HIDE Covers in Wildfire-Prone Areas: Material Suitability and Fire Performance

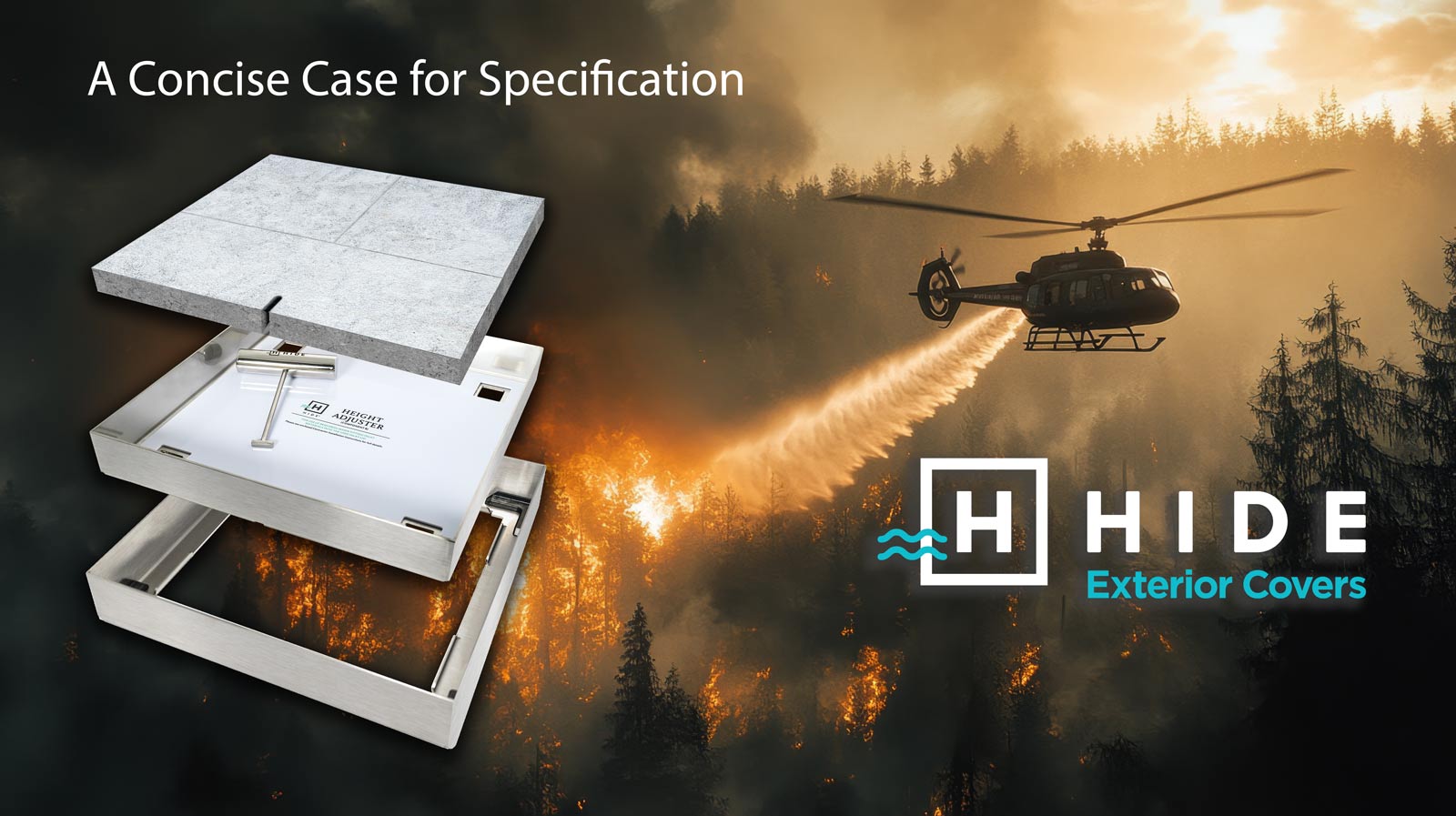

HIDE Covers : A Concise Case for Specification

Wildfire has become a design condition. At grade, flame fronts and radiant heat routinely exceed the softening and melting thresholds of common access lids. When a cover deforms, melts, or seizes shut, the result is predictable: the service point below—water, power, comms, drainage—is inaccessible precisely when it is most needed.

This article examines the suitability of HIDE™ exterior covers – which combine 316L stainless steel and concrete – for use in wildfire-prone areas, comparing their performance to typical plastic and other metal covers from a material and architectural perspective.

Conventional options fall short: Plastic lids (PVC/HDPE/composites) soften at relatively low temperatures, can ignite, collapse into openings, and re-solidify in distorted forms that jam access. Thin aluminium lids approach their melting point in severe fire conditions and readily deform; lightweight sheet-steel lids bow and bind as they heat, cool, and warp. Heavy solid steel or cast-iron plates resist fire but impose an industrial aesthetic and handling burden that clashes with public-realm and residential landscapes.

• Ambient flames at the ground surface can reach 800°C (1,472°F) on average, and in extreme cases exceed 1,200°C (2,192°F)
• Aluminium, in particular, has a melting point of only ~660°C (1,221°F).
• Cast iron has a melting point above 1150°C, but these are typically bulky, industrial-looking, and not designed for pedestrian-friendly landscaping.

HIDE takes a different approach: a 316 stainless-steel tray infilled with the surrounding hardscape—typically concrete, natural stone, porcelain, paver or ceramic tile—set perfectly flush in the surrounding frame. The locking and lifting action is a simple steel key engaging a slot formed in the inlay; there are no exposed polymers to fail under heat. (Where concrete models use plastic ‘keyway formers’ to help set the keyway while pouring concrete into the lid, their loss under extreme heat does not prevent operation.) Typical concrete infill depth is ~43 mm, with a deeper 62 mm option available in select sizes, for additional mass and insulation.

• Stainless steels are well known for their excellent behaviour in fires. Steel does not burn, and only begins to melt at around 1400 °C (2550 °F), far above the temperatures of most wildfires.
• Even at ~700°C (well above any building code test for exterior materials), 316 stainless still retains roughly half its room-temperature strength – enough to keep a small lid structurally sound.

Material behaviour under fire is the heart of the specification
Stainless steel does not burn and only approaches melting at catastrophic temperatures; in wildfire exposure it may discolour yet remain serviceable. Mineral inlays—concrete, stone, porcelain, paver, clay—are non-combustible. They absorb and attenuate heat, shield the utility cavity from ember attack, and, even where superficial spalling or hairline cracking occurs, preserve the lid’s structural function. Together, the steel shell (tensile integrity) and mineral core (compressive strength, thermal mass) act as a compact, durable barrier at grade. In practical terms: after the front has passed, the cover is still present, still operable, and the service point below is still protected.

Aesthetic and Safety Benefits in Public Spaces
Beyond pure fire resistance, HIDE covers bring architectural advantages that make them appealing for use in public and residential projects. In fire-prone regions, there is often a reluctance to use utilitarian fire-proof solutions (like solid steel plates or cast-iron manholes) in visible landscape areas because they create an industrial look. HIDE covers solve this by hiding the utility lid within the landscape finish, so the inlay matches the surrounding surface and the cover reads as a continuous plane—no visual “punctuation marks” and no trip edges. In plazas, promenades, pool decks, and residential forecourts, this matters: you can harden the site against fire without importing an industrial language. Pedestrian loading is accommodated, and the deeper 62 mm variant accepts poured concrete or thick stone to increase thermal mass where risk or performance criteria demand it.

Post-fire reliability is built in
The assembly tolerates quenching and thermal shock better than plastics or thin metals; minor post-event cosmetic repair (cleaning, grout touch-up) is usually sufficient. Grade 316L brings corrosion resistance in the aftermath (water, retardants, ash), avoiding the rapid degradation seen when coatings on mild steel fail. And because the lid remains flush and intact, movement through the site is safer for occupants and crews during response and recovery.

Alignment with WUI practice
Current wildland–urban interface guidance emphasises non-combustible materials within immediate defensible zones. A stainless-and-mineral composite lid fulfils that brief and can be substituted directly for legacy plastic or lightweight metal covers in most pedestrian and light-vehicular contexts—quietly improving resilience while maintaining the design intent.

Inlay choices for fire-exposed sites.
Prioritise non-combustible, kiln- or mineral-based materials: poured concrete (standard or low-shrink repair mortar), dense natural stone (granite, bluestone, slate), porcelain or ceramic tile, and clay pavers. For critical applications, specialty refractory or geopolymer concretes can further enhance heat endurance. Avoid combustible infills (e.g., wood) in fire zones; where a timber look is desired, specify porcelain with wood-grain finishes.

• Recommendation hierarchy for bushfire resistance:
  1) Porcelain or dense igneous stone (granite/basalt)
  2) Vitrified clay pavers/stoneware ceramic
  3) Well-detailed concrete
  4) Slate (select grade only)

About ratings
HIDE covers are not presently certified to a specific fire-resistance test; nor are ground lids typically required to be. Nonetheless, their constituent materials—316 stainless and mineral inlays—are fundamentally non-combustible and have well-characterized performance at elevated temperatures. If a project requires formal verification, furnace testing of a representative assembly could be commissioned; until then, the material logic remains clear.

Specification summary
For architects and specifiers seeking a wildfire-credible access solution that respects the public realm: HIDE delivers. It maintains access under heat, integrates invisibly with hardscape, aligns with WUI non-combustibility goals, and avoids the functional and visual compromises of plastics, thin metals, and heavy industrial plates. In short: fire resilience without aesthetic compromise—designed to stay operable when operations matter most.

Below is a spec-oriented list of suitable HIDE inlay materials, their firing/formation temperatures, and a bushfire suitability call.
